金属氧化膜电阻
产品名称:
金属氧化膜电阻
产品分类:
色环电阻

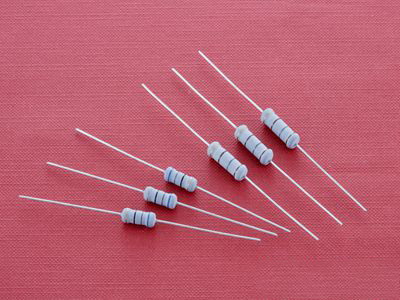

产品名称: 金属膜电阻

产品分类:金属膜电阻

产品介绍:
低温度系数,精度高,高频性能好
涂层为淺藍色环氧树脂,防水性好。
功率:1/8W - 5WS
精度:±1%,±5% 0.1% 0.01%

  • 详细介绍
  • 参数图纸
Products
产品
Metal Film Fixed Resistors
金属膜固定电阻器

Features
特点
1. Low temperature coefficient ,high precision ,and
good high frequency performance .
低温度系数、精度高、高频性好。
2. Operating ambient temperature
使用环境温度:-55°C ~+155°C
3. Film the metal in Vacuum ,the surface coating is
green resin with the good waterproof .
真空溅射金属皮膜,涂层为湖绿色环氧树脂,防水性好。
4. Resistance tolerance 阻值误差 : ±5%±1%. 0.1% 0.01%

Part No.
料号
Power
功率
Resistance
 tolerance
阻值范围
Max. working
Voltage
最大工作电压
Max. overload
voltage
最大负荷电压
Max. insulation
voltage
最高绝缘电压


CMF014S
MFR014S
1/4WS
0R~22M
150V
300V
300V

CMF014
MFR014
1/4W
0R~22M
250V
500V
500V


MFR01S
1WS
0R1~22M
350V
700V
700V

MFR01B
1W
0R1~22M
500V
1000V
1000V

MFR02S
2WS
0R1~22M
500V
1000V
1000V

MFR02B
2W
0R1~22M
500V
1000V
1000V

MFR03S
3WS
0R1~22M
500V
1000V
1000V

MFR03B
3W
0R1~22M
700V
1200V
1000V

MFR05S
3WS
0R1~22M
700V
1200V
1000V

Test Item 测试项目
Test Condition 测试条件
Performance
性能

Temperature Coefficient
温度系数
The resistance value at normal temperature and normal temperature
added 100°C, calculate per C resistance value change rate.
 在常温及常温+100°C时分别测量电阻值并计算每度的阻值变化。
±300ppm/°C

Short Time overload
短时间过负荷
10×rated voltage or Max. overload voltage(get the lower) for 5 seconds.
施加10倍额定功率的电压或最高负荷电压(取较小者)5秒。
R≤±(0.5%R0+0.05Ω)

Pulse overload
断续过负荷
At 4×rated voltage or Max. pulse overload voltage(get the lower)cycle 10000±200times(1second on,25 seconds off).
4倍额定电压或最高负荷断续电压(取较小者)测试1秒,
25秒,循环10000±200次。
R≤±(1%R0+0.05Ω)

Resistance to soldering Heat 耐焊接热
Immerge into the 350±10°C tin stove for 2~3seconds.
 350±10°C锡炉中浸入2~3秒。
R≤±(0.5%R0+0.05Ω)

Solderability
可焊性
Immerge into the 245±3°C tin stove for 2~3seconds.
245±3°C锡炉中浸入2~3秒。
The soldering area is
 over 95%焊锡面积覆盖率达95%以上

Temperature cycling
温度循环
At -55°C for 30 min. ,then at+25°C for 10~15°C,then at +125°C for 30 min., then at +25°C for 10~15 min., total 5cycles. -55°C时放置30分钟,然后在+25°C时放置10~15分钟,然后再在+275°C时放置30分钟,接着在+25°C时放置10~15分钟,共循环5次。
R≤±(0.5%R0+0.05Ω)

Load life in humidity
耐湿负荷寿命
Overload rated voltage or Max. working voltage(get the lower) for 1000 hours(1.5hours on and 0.5 hours off) at the 40±2°C and 90~95% relative humidity. 在温度为40±2°C,相对湿度为90~95%的恒温恒湿箱中,施加额定电压或最大工作电压(取较小者)共1000小时(通电0.5小时,断电0.5小时)
R≤±(2%R0+0.05Ω)

Load life in heat
耐湿负荷寿命
Overload rated voltage or Max. working voltage(get the lower) for 1000 hours(1.5hours on and 0.5 hours off) at the 70±2°C. 在温度为70±2°C的恒温恒湿箱中,施加额定电压或最大工作电压(取较小者)共1000小时(通电0.5小时,断电0.5小时)
R≤±(2%R0+0.05Ω
